i have a FML02B that has stopped working. I have tried every suggestion on this site to unbrick - without success.

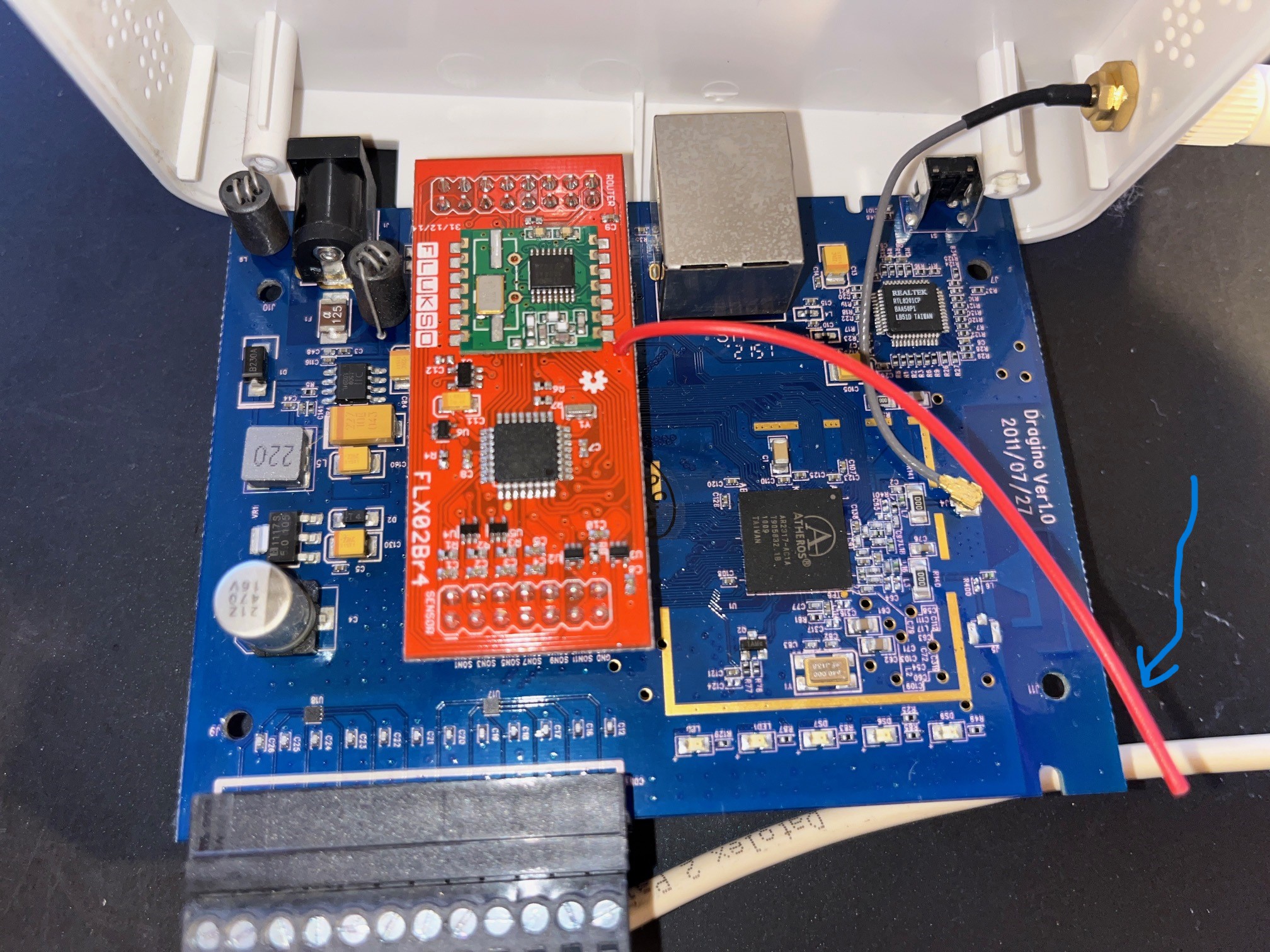

I pulled it apart and it seems there is a wire broken. The red wire from the main board to the Flusko sub board has broken from the main board. It's a red wire, so I guess its power, but i cant find the broken end on the main board - even looking with a magnifying glass.
Can anyone tell me were it should connect to? See photo attached.
| Attachment | Size |
|---|---|
| flukso inside.JPG | 761.46 KB |
The wire is not broken, but the antenna of the onboard cube connector. Under normal conditions you will not have an visual defect, but either a power supply issue, a worn out read-only memory or a defect of one of the capacitors. So, please describe a little more in detail, what you think stopped working. Have you exchanged the power supply?
Thanks for your response - I was going mad looking for where the wire may have broken from - I didn't consider it was an antenna
My issues is:
Flukso powers on ok, but is non responsive - but wont pick up an IP address from router. It has been on ethernet fixed IP for a couple of years but now wont show webpage or respond to a ping.
leds:
power - solid red
heartbeat - solid red
globe - Solid red
Ethernet - solid red
wifi - off
I have tried every combination of pushing toggle button 10 secs, 30 secs, 120 secs and restarting, but heartbeat button remains solid red. It never flashes
I have tried the steps at https://www.flukso.net/content/no-ip-connect, but the flashing step fails
with message:
"Stderr:Expect arp with length 60, received 42"
"Stderr:Expect arp with length 60, received 42 "
Any ideas would be great.
Do you think this is fixable or do i have some fatal hardware fault?
A heartbeat is sent only on connection to a server --> https://github.com/flukso/flm02/blob/develop/openwrt/package/flukso/luas...
Did you try to directly connect your fluksometer to a computer as per installation? So, connect to it like on installation with a network cable directly to the computers LAN port and chose the default IP address http://192.168.255.1 ?
Refer to the manual https://www.flukso.net/files/docs/en/fluksometer.html#button
If a have some time ... , i will open my FLM02b to look for the red wire.
Now and then mine also stopped working, so i disconnect the power supply, wait 5 minutes and connect it back again. After 1 or 2 minutes the Flukso is back alive.
This evening i was playing with Node Red and connected extra mqtt-nodes but they where doubled, after 15 minutes, my Flukso stopped working, only 3 leds where up :
power - solid red
heartbeat - solid red
globe - solid red
I fixed the mqtt-nodes and started up again the Flukso.
Ok, not to look for the red wire if it is a antenna :-)
@ SBOYALL, have you tried connecting with Wifi ?
You can toggle this with the reset button, see the manual.
